Outdoor projector protective shell
The protection of sensitive electronic equipment, such as projectors, in outdoor environments is a complex challenge, especially in the presence of harsh weather conditions and aggressive atmospheric agents. The Xerofos outdoor projector case has been developed to meet these specific needs, offering advanced technical solutions to ensure maximum protection, durability, and reliable performance. Thanks to their innovative design, Xerofos enclosures allow operation in demanding environmental conditions without compromising the functionality and integrity of the devices.
Available Configurations

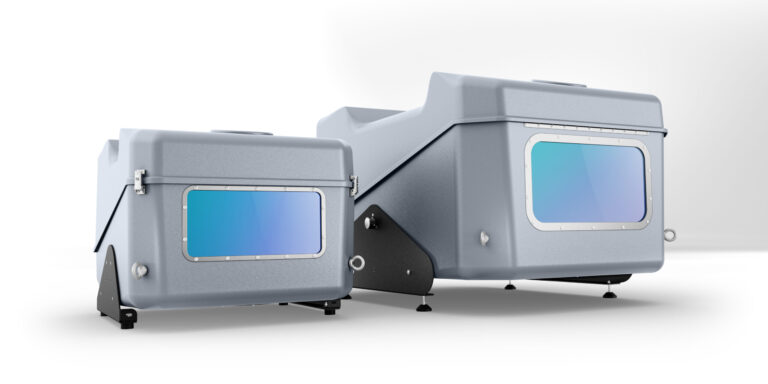

The Xerofos outdoor projector case is available in two versions, designed to accommodate different projector sizes on the market. This versatility ensures compatibility with a wide range of devices.
Additionally, various mounting supports are available, designed to facilitate installation on different types of surfaces and configurations.
Thermal Control System
The cooling system of the Xerofos is based on advanced thermal management. Through a thermostat, the system controls the activation of the fan based on temperature variations. The presence of a high-precision NTC temperature sensor allows for continuous monitoring of the internal environmental conditions.
This technical solution reduces the risks of overheating and condensation, helping to maintain the device in optimal operating conditions.
Technical Features
The construction of the Xerofos range combines durable materials and advanced technologies to ensure reliable operation in any climatic context. These products are suitable for both temporary and permanent applications in exposed environments.

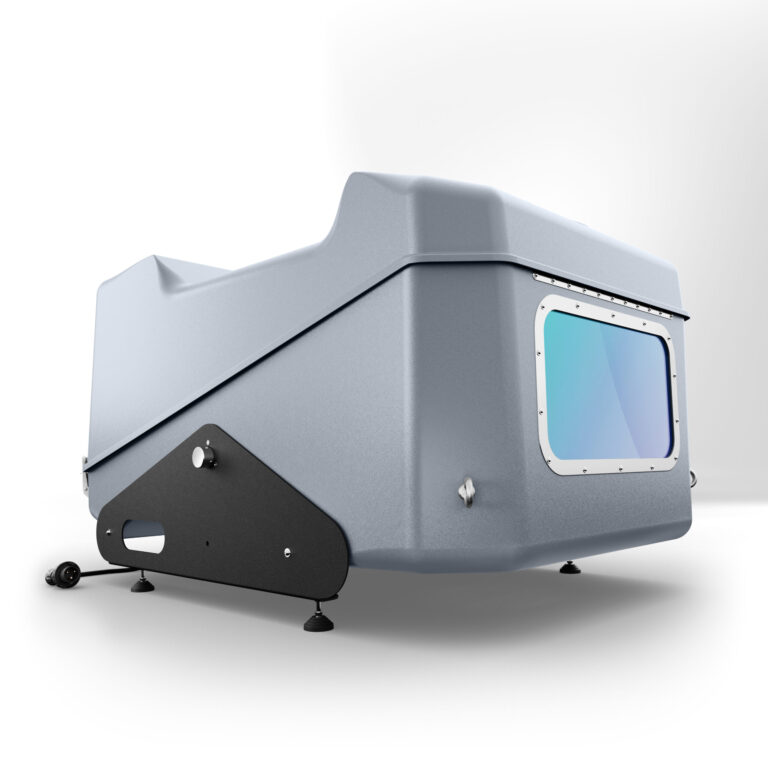

Outdoor Protection for Projectors
- External Dimensions: 1584x1083x910 mm
- Internal Dimensions: 1500x960x507 mm
- Weight: 111 kg
- Material: UV-protected ABS ASA in RAL 7040 color on a galvanized steel structure
- Cooling System: Air cooling managed by a temperature controller capable of intelligently regulating the fan’s on/off operation based on temperature variations, using the included high-precision NTC temperature sensor
- Fork Dimensions: 1084×976 mm
- Fork Weight: 47 kg
Outdoor Protection for Projectors
- External Dimensions: 961x794x661 mm
- Internal Dimensions: 900x740x360 mm
- Weight: 52.6 kg
- Material: UV-protected ABS ASA in RAL 7040 color on a galvanized steel structure
- Cooling System: Air cooling managed by a temperature controller capable of intelligently regulating the fan’s on/off operation based on temperature variations, using the included high-precision NTC temperature sensor
- Support Fork Weight: 6.5 kg
- Ceiling Fork Weight: 8.5 kg
